Description

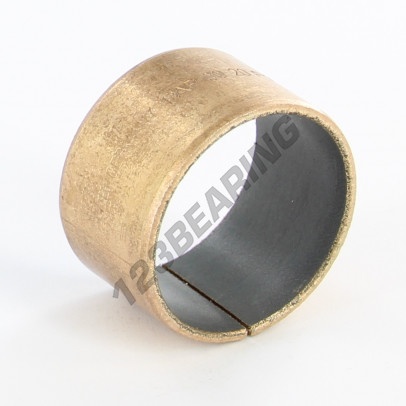

The Pap Bush known by the reference PAP3020-P10-KS KS has an inside diameter of 30 mm, an outside diameter of 34 mm and a length of 20 mm.
9 parts in stock
Quantity | Price |
---|---|
5 - 9 | €7.24 excl. VAT |
10 - 24 | €6.13 excl. VAT |
25 - 49 | €5.02 excl. VAT |
50 - inf | €3.91 excl. VAT |
Added
Need help or advice?
+33.359.36.04.90
Description
The Pap Bush known by the reference PAP3020-P10-KS KS has an inside diameter of 30 mm, an outside diameter of 34 mm and a length of 20 mm.
Need help or advice?
+33.359.36.04.90
The Pap Bush known by the reference PAP3020-P10-KS KS has an inside diameter of 30 mm, an outside diameter of 34 mm and a length of 20 mm.
What do suffixes mean ...?
P10, P20, P11 and P14 ?
This is the type of coating applied on this smooth ring:
P10 = self-lubricated PTFE (Teflon) coating, will not require maintenance
P20 = PTFE (Teflon) self-lubricated honeycomb coating, with a grease hole, which will allow maintenance and lubrication of the ring
P11 = self lubricated PTFE (Teflon) coating, which will not require maintenance. High thermal and antimagnetic conductivity
P14 = Self lubricated PTFE (Teflon) coating, which will not require maintenance. Does not contain lead and is therefore a more ecological product.What is the purpose of a smooth ring?
A smooth ring has a similar use to bronze rings , in generally smaller thicknesses than the ring bronze. > It will serve as a guide in rotation of an axis with respect to a fixed reference, where a minimum size is necessary.
The wear on the bushings is slow and takes up little time.
Some versions are maintenance-free, and can run dry. Operating temperature ranges are very wide: -200 ° C to + 280 ° C.
