PAP bush PWM253020-SKF

25 25 30 30 20 20

Part number : PWM253020-SKF

SKF

Description

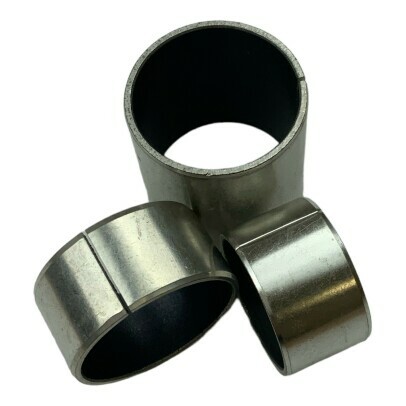

The Pap Bush known by the reference PWM253020-SKF SKF has an inside diameter of 25 mm, an outside diameter of 30 mm and a length of 20 mm.

See data sheet
Your price: €99.92 excl. VAT

  8 to 10 days

Quantity Price
5 - 9 €92.13 excl. VAT
10 - 24 €84.34 excl. VAT
25 - 49 €76.55 excl. VAT
50 - inf €68.76 excl. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Pap Bush known by the reference PWM253020-SKF SKF has an inside diameter of 25 mm, an outside diameter of 30 mm and a length of 20 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    7316570364835
  • INSIDE DIAMETER
    25  MM
  • OUTSIDE DIAMETER
    30  MM
  • THICKNESS
    20  MM
  • WEIGHT
    8  G
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Pap Bush known by the reference PWM253020-SKF SKF has an inside diameter of 25 mm, an outside diameter of 30 mm and a length of 20 mm.

EXPERT ADVICE

What do suffixes mean ...?

P10, P20, P11 and P14 ?

This is the type of coating applied on this smooth ring:
P10 = self-lubricated PTFE (Teflon) coating, will not require maintenance
P20 = PTFE (Teflon) self-lubricated honeycomb coating, with a grease hole, which will allow maintenance and lubrication of the ring
P11 = self lubricated PTFE (Teflon) coating, which will not require maintenance. High thermal and antimagnetic conductivity
P14 = Self lubricated PTFE (Teflon) coating, which will not require maintenance. Does not contain lead and is therefore a more ecological product.

What is the purpose of a smooth ring?

A smooth ring has a similar use to bronze rings , in generally smaller thicknesses than the ring bronze. > It will serve as a guide in rotation of an axis with respect to a fixed reference, where a minimum size is necessary.
The wear on the bushings is slow and takes up little time.
Some versions are maintenance-free, and can run dry.
Operating temperature ranges are very wide: -200 ° C to + 280 ° C.
