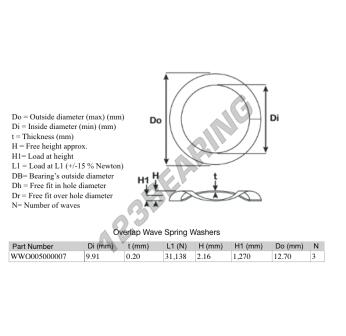

Overlap Wave Spring Washer
Part number : OWSW-12.7-9.91-0.2-3
Description
The Overlap Wave Spring Washer with the reference OWSW-12.7-9.91-0.2-3 has an inner diameter of 9.91 mm and a thickness of 0.2 mm. It is made of STEEL.
You can find all the information you need about our products in our expert's advice, by clicking here Here
31 parts in stock
Need help or advice?
+33.359.36.04.90
Description
The Overlap Wave Spring Washer with the reference OWSW-12.7-9.91-0.2-3 has an inner diameter of 9.91 mm and a thickness of 0.2 mm. It is made of STEEL.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
+33.359.36.04.90
Brand | GEN |
---|---|
Weight | 1 g |
Inside diameter | 9,91 mm |
Thickness | 0,20 mm |
Material | STEEL |
Packaging | 1 |
Load at L1 | 31,14 N |
Approximate headroom | 2,16 mm |
Load height | 1.2700 |
Outside diameter (max) | 12,70 mm |
Number of waves | 3.0000 |
The Overlap Wave Spring Washer with the reference OWSW-12.7-9.91-0.2-3 has an inner diameter of 9.91 mm and a thickness of 0.2 mm. It is made of STEEL.
