Split Wave Spring Washer
Part number : SWSW-85.73-74.68-0.76-4
Description
The Split Wave Spring Washer with the reference SWSW-85.73-74.68-0.76-4 has an inner diameter of 74.68 mm and a thickness of 0.76 mm. It is made of STEEL.
You can find all the information you need about our products in our expert's advice, by clicking here Here
10 parts in stock
Need help or advice?
+33.359.36.04.90
Description
The Split Wave Spring Washer with the reference SWSW-85.73-74.68-0.76-4 has an inner diameter of 74.68 mm and a thickness of 0.76 mm. It is made of STEEL.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
+33.359.36.04.90

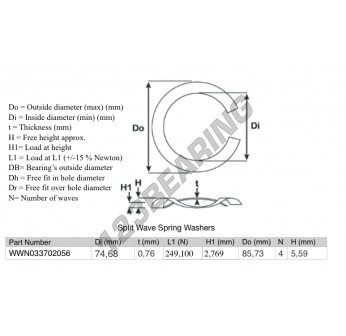

Brand | GEN |
---|---|
Inside diameter | 74,68 mm |
Thickness | 0,76 mm |
Material | STEEL |
Packaging | 1 |
Load at L1 | 249,10 N |
Load height | 2.7690 |
Outside diameter (max) | 85,73 mm |
Number of waves | 4.0000 |
The Split Wave Spring Washer with the reference SWSW-85.73-74.68-0.76-4 has an inner diameter of 74.68 mm and a thickness of 0.76 mm. It is made of STEEL.
