Self aligning ball bearing 11204-ZEN

20 20 47 47 40 40

Part number : 11204-ZEN

ZEN

Description

The Self Aligning Ball Bearing, known as 11204-ZEN ZEN, has an inner diameter of 20 mm, an outer diameter of 47 mm and a thickness of 40 mm.

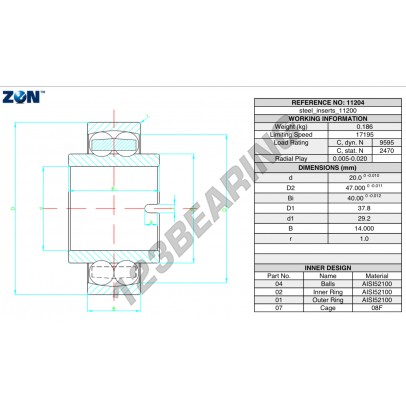

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Ball Bearing, known as 11204-ZEN ZEN, has an inner diameter of 20 mm, an outer diameter of 47 mm and a thickness of 40 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060504821
  • INSIDE DIAMETER
    20  MM
  • OUTSIDE DIAMETER
    47  MM
  • THICKNESS
    40  MM
  • LIMITING SPEED
    17195  RPM
  • DYNAMIC LOAD
    9.595  KN
  • STATIC LOAD
    2.47  KN
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 11204-ZEN ZEN, has an inner diameter of 20 mm, an outer diameter of 47 mm and a thickness of 40 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
