Self aligning ball bearing 1202-JTEKT

15 15 35 35 11 11

Part number : 1202-JTEKT

JTEKT

Description

The Self Aligning Ball Bearing, known as 1202-JTEKT JTEKT, has an inner diameter of 15 mm, an outer diameter of 35 mm and a thickness of 11 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Ball Bearing, known as 1202-JTEKT JTEKT, has an inner diameter of 15 mm, an outer diameter of 35 mm and a thickness of 11 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

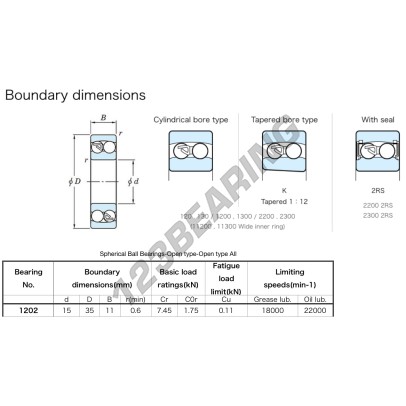

TECHNICAL DATA
  • BRAND
  • N° EAN13
    4549250087035
  • INSIDE DIAMETER
    15  MM
  • OUTSIDE DIAMETER
    35  MM
  • THICKNESS
    11  MM
  • LIMITING SPEED
    18000  RPM
  • DYNAMIC LOAD
    7.45  KN
  • STATIC LOAD
    1.75  KN
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 1202-JTEKT JTEKT, has an inner diameter of 15 mm, an outer diameter of 35 mm and a thickness of 11 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
