Self aligning ball bearing 1205-JTEKT

25 25 52 52 15 15

Part number : 1205-JTEKT

JTEKT

Description

The Self Aligning Ball Bearing, known as 1205-JTEKT JTEKT, has an inner diameter of 25 mm, an outer diameter of 52 mm and a thickness of 15 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Ball Bearing, known as 1205-JTEKT JTEKT, has an inner diameter of 25 mm, an outer diameter of 52 mm and a thickness of 15 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

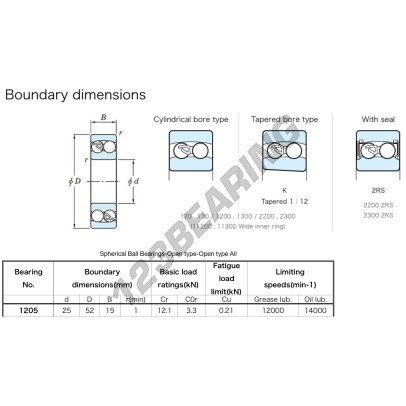

TECHNICAL DATA
  • INSIDE DIAMETER
    25  MM
  • OUTSIDE DIAMETER
    52  MM
  • THICKNESS
    15  MM
  • LIMITING SPEED
    12000  RPM
  • BRAND
  • DYNAMIC LOAD
    12.1  KN
  • STATIC LOAD
    3.3  KN
  • PACKAGING
    1
  • N° EAN13
    4549250087110
Description

The Self Aligning Ball Bearing, known as 1205-JTEKT JTEKT, has an inner diameter of 25 mm, an outer diameter of 52 mm and a thickness of 15 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
