Self aligning ball bearing 13948-SKF

240 240 320 320 60 60

Part number : 13948-SKF

SKF

Description

The Self Aligning Ball Bearing, known as 13948-SKF SKF, has an inner diameter of 240 mm, an outer diameter of 320 mm and a thickness of 60 mm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Ball Bearing, known as 13948-SKF SKF, has an inner diameter of 240 mm, an outer diameter of 320 mm and a thickness of 60 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

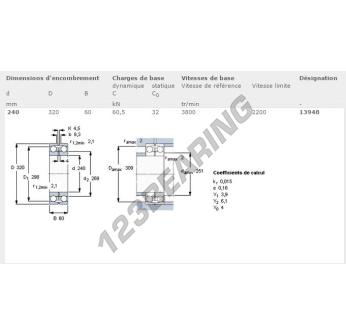

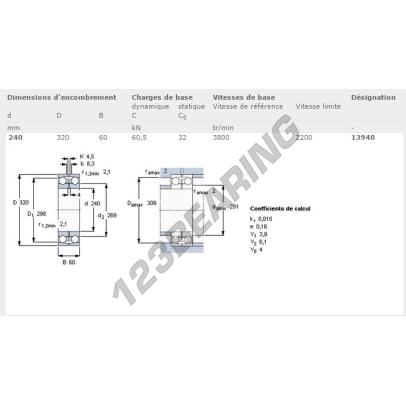

TECHNICAL DATA
  • BRAND
  • N° EAN13
    7316571591346
  • INSIDE DIAMETER
    240  MM
  • OUTSIDE DIAMETER
    320  MM
  • THICKNESS
    60  MM
  • WEIGHT
    11300  G
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 13948-SKF SKF, has an inner diameter of 240 mm, an outer diameter of 320 mm and a thickness of 60 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
