Self aligning ball bearing 2204-E-C3-NSK

20 20 47 47 18 18

Part number : 2204-E-C3-NSK

NSK

Description

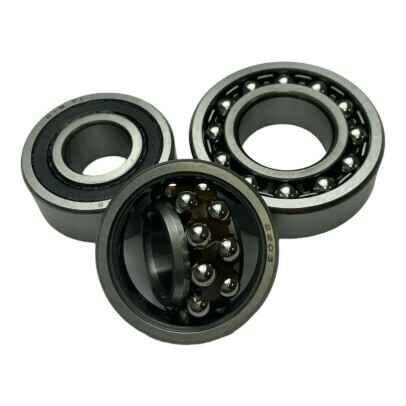

The Self Aligning Ball Bearing, known as 2204-E-C3-NSK NSK, has an inner diameter of 20 mm, an outer diameter of 47 mm and a thickness of 18 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Ball Bearing, known as 2204-E-C3-NSK NSK, has an inner diameter of 20 mm, an outer diameter of 47 mm and a thickness of 18 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3663952806297
  • INSIDE DIAMETER
    20  MM
  • OUTSIDE DIAMETER
    47  MM
  • THICKNESS
    18  MM
  • WEIGHT
    137  G
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 2204-E-C3-NSK NSK, has an inner diameter of 20 mm, an outer diameter of 47 mm and a thickness of 18 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
