2209-2RS-JTEKT
JTEKT

Self aligning ball bearing 2209-2RS-JTEKT

45 45 85 85 23 23

Part number : 2209-2RS-JTEKT

JTEKT
Trustpilot

Trustpilot

Description

The Self Aligning Ball Bearing, known as 2209-2RS-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 85 mm and a thickness of 23 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Self Aligning Ball Bearing, known as 2209-2RS-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 85 mm and a thickness of 23 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

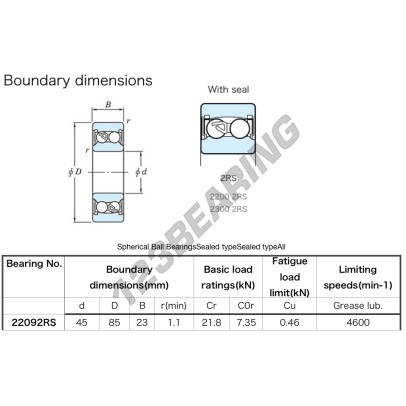

TECHNICAL DATA
  • BRAND
    JTEKT
  • N° EAN13
    4549250093418
  • INSIDE DIAMETER
    45  MM
  • OUTSIDE DIAMETER
    85  MM
  • THICKNESS
    23  MM
  • LIMITING SPEED
    4600  RPM
  • DYNAMIC LOAD
    21.8  KN
  • STATIC LOAD
    7.35  KN
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 2209-2RS-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 85 mm and a thickness of 23 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
