22214E-SKF
22214E-SKF
22214E-SKF
SKF

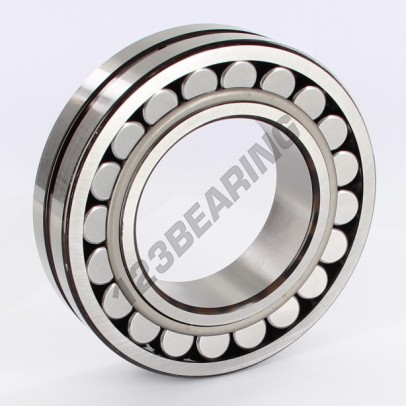

Self aligning roller bearing 22214E-SKF

70 70 125 125 31 31

Part number : 22214E-SKF

SKF
Trustpilot

Trustpilot

Description

The Self Aligning Roller Bearing, known as 22214E-SKF SKF, has an inner diameter of 70 mm, an outer diameter of 125 mm and a thickness of 31 mm.

See data sheet
Your price: €154.42 excl. VAT

  15 parts in stock

Quantity Price
5 - 9 €146.66 excl. VAT
10 - 24 €138.90 excl. VAT
25 - 49 €131.14 excl. VAT
50 - inf €123.38 excl. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Self Aligning Roller Bearing, known as 22214E-SKF SKF, has an inner diameter of 70 mm, an outer diameter of 125 mm and a thickness of 31 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
CUSTOMERS ALSO BOUGHT
Deep groove ball bearing - 6212-2RS1-SKF SKF

Waterproof

DEEP GROOVE BALL BEARING 6212-2RS1-SKF

60 60 110 110 22 22

€25.57 excl. VAT


50+ parts in stock

Internal circlip - CIRCLIP-INT-125 GEN

INTERNAL CIRCLIP CIRCLIP-INT-125

4 4

€7.41 excl. VAT


30 parts in stock

Rotary shaft seal - OAS-80X110X10-NBR GEN

ROTARY SHAFT SEAL OAS-80X110X10-NBR

80 80 110 110 10 10

€9.27 excl. VAT


50+ parts in stock

TECHNICAL DATA
  • BRAND
    SKF
  • N° EAN13
    7316576652356
  • INSIDE DIAMETER
    70  MM
  • OUTSIDE DIAMETER
    125  MM
  • THICKNESS
    31  MM
  • LIMITING SPEED
    6700  RPM
  • WEIGHT
    1636  G
  • DYNAMIC LOAD
    213  KN
  • STATIC LOAD
    228  KN
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Self Aligning Roller Bearing, known as 22214E-SKF SKF, has an inner diameter of 70 mm, an outer diameter of 125 mm and a thickness of 31 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
