Self aligning roller bearing 22220EM-W33-NTN

100 100 180 180 46 46

Part number : 22220EM-W33-NTN

NTN

Description

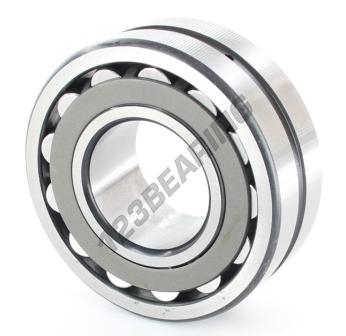

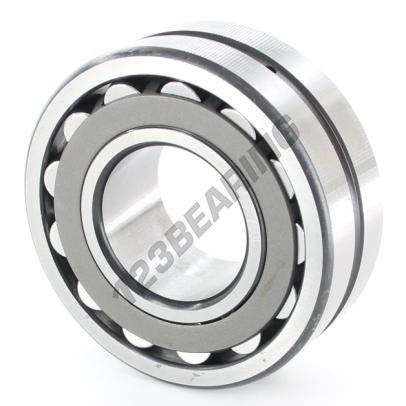

The Self Aligning Roller Bearing, known as 22220EM-W33-NTN NTN, has an inner diameter of 100 mm, an outer diameter of 180 mm and a thickness of 46 mm.

Your price: 362,13 € excl. VAT

  8 to 10 days

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Roller Bearing, known as 22220EM-W33-NTN NTN, has an inner diameter of 100 mm, an outer diameter of 180 mm and a thickness of 46 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616061079380
  • INSIDE DIAMETER
    100  MM
  • OUTSIDE DIAMETER
    180  MM
  • THICKNESS
    46  MM
  • WEIGHT
    4760  G
  • DYNAMIC LOAD
    472  KN
  • STATIC LOAD
    495  KN
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Self Aligning Roller Bearing, known as 22220EM-W33-NTN NTN, has an inner diameter of 100 mm, an outer diameter of 180 mm and a thickness of 46 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
