22310-E-C3-SKF
22310-E-C3-SKF
SKF

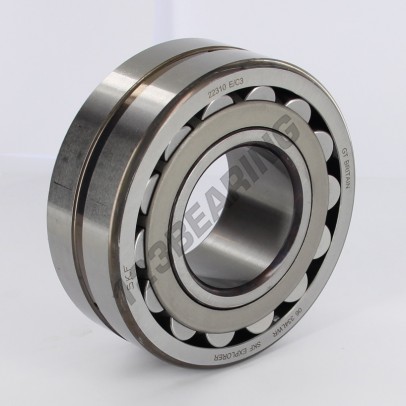

Self aligning roller bearing 22310-E-C3-SKF

50 50 110 110 40 40

Part number : 22310-E-C3-SKF

SKF
Trustpilot

Trustpilot

Description

The Self Aligning Roller Bearing, known as 22310-E-C3-SKF SKF, has an inner diameter of 50 mm, an outer diameter of 110 mm and a thickness of 40 mm.

See data sheet
Your price: €137.25 excl. VAT

  4 parts in stock

Quantity Price
5 - 9 €129.24 excl. VAT
10 - 24 €121.23 excl. VAT
25 - 49 €113.22 excl. VAT
50 - inf €105.21 excl. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Self Aligning Roller Bearing, known as 22310-E-C3-SKF SKF, has an inner diameter of 50 mm, an outer diameter of 110 mm and a thickness of 40 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
CUSTOMERS ALSO BOUGHT
Rotary shaft seal - OAS-70X110X13-NBR GEN

ROTARY SHAFT SEAL OAS-70X110X13-NBR

70 70 110 110 13 13

€8.59 excl. VAT


50+ parts in stock

Thrust ball bearing - 51118-SKF SKF

THRUST BALL BEARING 51118-SKF

90 90 120 120 22 22

€58.20 excl. VAT


5 parts in stock

Internal circlip - CIRCLIP-INT-110 GEN

INTERNAL CIRCLIP CIRCLIP-INT-110

4 4

€6.78 excl. VAT


35 parts in stock

TECHNICAL DATA
  • BRAND
    SKF
  • N° EAN13
    7316571551685
  • INSIDE DIAMETER
    50  MM
  • OUTSIDE DIAMETER
    110  MM
  • THICKNESS
    40  MM
  • LIMITING SPEED
    4800  RPM
  • WEIGHT
    1860  G
  • DYNAMIC LOAD
    220000  KN
  • STATIC LOAD
    224000  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 22310-E-C3-SKF SKF, has an inner diameter of 50 mm, an outer diameter of 110 mm and a thickness of 40 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
