Description

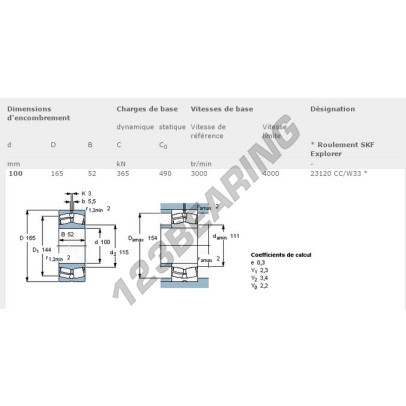

The Self Aligning Roller Bearing, known as 23120-E-SKF SKF, has an inner diameter of 100 mm, an outer diameter of 165 mm and a thickness of 52 mm.
8 to 10 days
Quantity | Price |
---|---|
5 - 9 | €376.54 excl. VAT |
10 - 24 | €351.83 excl. VAT |
25 - 49 | €327.12 excl. VAT |
50 - inf | €302.41 excl. VAT |
Added
Need help or advice?
+33.359.36.04.90
Description
The Self Aligning Roller Bearing, known as 23120-E-SKF SKF, has an inner diameter of 100 mm, an outer diameter of 165 mm and a thickness of 52 mm.
Need help or advice?
+33.359.36.04.90
The Self Aligning Roller Bearing, known as 23120-E-SKF SKF, has an inner diameter of 100 mm, an outer diameter of 165 mm and a thickness of 52 mm.
What is a self aligning bearing?
A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover. The tapered bore is indicated by the letter "K" in the reference.What does the letter "K" mean in the reference?
The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
