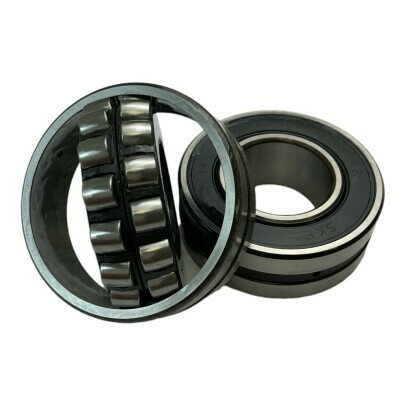

Self aligning roller bearing 23138-CA-W33

190 190 320 320 104 104

Part number : 23138-CA-W33

GEN

Description

The Self Aligning Roller Bearing, known as 23138-CA-W33 Generic, has an inner diameter of 190 mm, an outer diameter of 320 mm and a thickness of 104 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Roller Bearing, known as 23138-CA-W33 Generic, has an inner diameter of 190 mm, an outer diameter of 320 mm and a thickness of 104 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
    GEN
  • INSIDE DIAMETER
    190  MM
  • OUTSIDE DIAMETER
    320  MM
  • THICKNESS
    104  MM
  • LIMITING SPEED
    1000  RPM
  • DYNAMIC LOAD
    1200000  KN
  • STATIC LOAD
    2080000  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 23138-CA-W33 Generic, has an inner diameter of 190 mm, an outer diameter of 320 mm and a thickness of 104 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
