Self aligning roller bearing 23224-CC-W33-SKF

120 120 215 215 76 76

Part number : 23224-CC-W33-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 23224-CC-W33-SKF SKF, has an inner diameter of 120 mm, an outer diameter of 215 mm and a thickness of 76 mm.

See data sheet
Your price: €893.44 excl. VAT

  8 to 10 days

Quantity Price
5 - 9 €853.35 excl. VAT
10 - 24 €813.26 excl. VAT
25 - 49 €773.17 excl. VAT
50 - inf €733.08 excl. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Roller Bearing, known as 23224-CC-W33-SKF SKF, has an inner diameter of 120 mm, an outer diameter of 215 mm and a thickness of 76 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

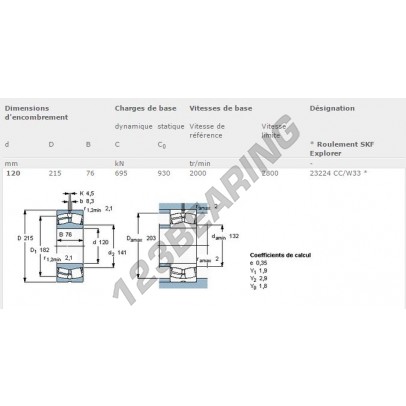

TECHNICAL DATA
  • BRAND
  • N° EAN13
    7316576657283
  • INSIDE DIAMETER
    120  MM
  • OUTSIDE DIAMETER
    215  MM
  • THICKNESS
    76  MM
  • LIMITING SPEED
    2800  RPM
  • WEIGHT
    12000  G
  • DYNAMIC LOAD
    732  KN
  • STATIC LOAD
    930  KN
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Self Aligning Roller Bearing, known as 23224-CC-W33-SKF SKF, has an inner diameter of 120 mm, an outer diameter of 215 mm and a thickness of 76 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
