Self aligning roller bearing 23226RZK-AHX322-JTEKT

125 125 230 230 80 80

Part number : 23226RZK-AHX322-JTEKT

JTEKT

Description

The Self Aligning Roller Bearing, known as 23226RZK-AHX322-JTEKT JTEKT, has an inner diameter of 125 mm, an outer diameter of 230 mm and a thickness of 80 mm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Roller Bearing, known as 23226RZK-AHX322-JTEKT JTEKT, has an inner diameter of 125 mm, an outer diameter of 230 mm and a thickness of 80 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

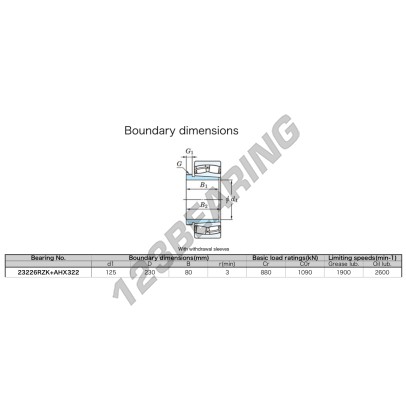

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060793430
  • INSIDE DIAMETER
    125  MM
  • OUTSIDE DIAMETER
    230  MM
  • THICKNESS
    80  MM
  • LIMITING SPEED
    1900  RPM
  • DYNAMIC LOAD
    880  KN
  • STATIC LOAD
    1090  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 23226RZK-AHX322-JTEKT JTEKT, has an inner diameter of 125 mm, an outer diameter of 230 mm and a thickness of 80 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
