Self aligning roller bearing 23236-CCK-W33-SKF

180 180 320 320 112 112

Part number : 23236-CCK-W33-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 23236-CCK-W33-SKF SKF, has an inner diameter of 180 mm, an outer diameter of 320 mm and a thickness of 112 mm.

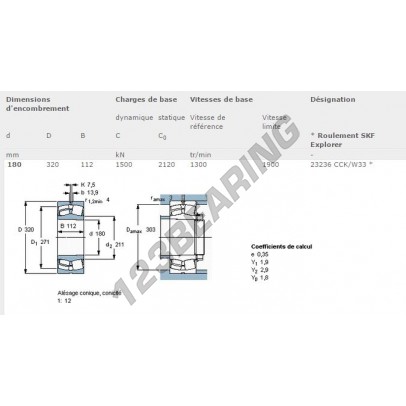

See data sheet
Your price: €2,014.91 excl. VAT

  8 to 10 days

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Roller Bearing, known as 23236-CCK-W33-SKF SKF, has an inner diameter of 180 mm, an outer diameter of 320 mm and a thickness of 112 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    7316576657511
  • INSIDE DIAMETER
    180  MM
  • OUTSIDE DIAMETER
    320  MM
  • THICKNESS
    112  MM
  • LIMITING SPEED
    1300  RPM
  • WEIGHT
    37000  G
  • DYNAMIC LOAD
    1500000  KN
  • STATIC LOAD
    2120000  KN
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Self Aligning Roller Bearing, known as 23236-CCK-W33-SKF SKF, has an inner diameter of 180 mm, an outer diameter of 320 mm and a thickness of 112 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
