Self aligning roller bearing 24038-CC-W33-SKF

190 190 290 290 100 100

Part number : 24038-CC-W33-SKF

SKF
Trustpilot

Trustpilot

Description

The Self Aligning Roller Bearing, known as 24038-CC-W33-SKF SKF, has an inner diameter of 190 mm, an outer diameter of 290 mm and a thickness of 100 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Self Aligning Roller Bearing, known as 24038-CC-W33-SKF SKF, has an inner diameter of 190 mm, an outer diameter of 290 mm and a thickness of 100 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

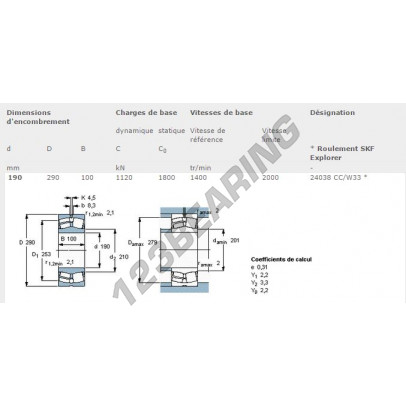

TECHNICAL DATA
  • BRAND
    SKF
  • N° EAN13
    7316577004772
  • INSIDE DIAMETER
    190  MM
  • OUTSIDE DIAMETER
    290  MM
  • THICKNESS
    100  MM
  • LIMITING SPEED
    1400  RPM
  • DYNAMIC LOAD
    1120000  KN
  • STATIC LOAD
    1800000  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 24038-CC-W33-SKF SKF, has an inner diameter of 190 mm, an outer diameter of 290 mm and a thickness of 100 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
