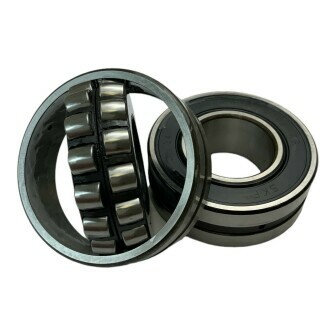

Self aligning roller bearing 24148-BE-XL-C3-FAG

240 240 400 400 160 160

Part number : 24148-BE-XL-C3-FAG

FAG

Description

The Self Aligning Roller Bearing, known as 24148-BE-XL-C3-FAG FAG, has an inner diameter of 240 mm, an outer diameter of 400 mm and a thickness of 160 mm.

See data sheet
Your price: €3,123.13 excl. VAT

  8 to 10 days

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Self Aligning Roller Bearing, known as 24148-BE-XL-C3-FAG FAG, has an inner diameter of 240 mm, an outer diameter of 400 mm and a thickness of 160 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    4047643155731
  • INSIDE DIAMETER
    240  MM
  • OUTSIDE DIAMETER
    400  MM
  • THICKNESS
    160  MM
  • WEIGHT
    78440  G
  • DYNAMIC LOAD
    2600  KN
  • STATIC LOAD
    3900  KN
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Self Aligning Roller Bearing, known as 24148-BE-XL-C3-FAG FAG, has an inner diameter of 240 mm, an outer diameter of 400 mm and a thickness of 160 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
