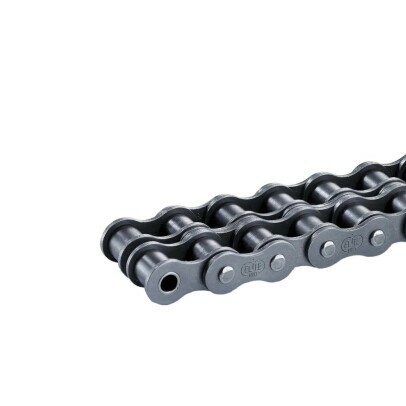

Roller chain duplex 12B-2-SS-ELITE-5M-IWIS

Part number : 12B-2-SS-ELITE-5M-IWIS

IWIS

Description

The Roller Chain Duplex of type 12B of the brand IWIS known under the reference 12B-2-SS-ELITE-5M-IWIS. It has a pitch 19.05 mm and is to the iso606bs norm.

Your price: 1 030,10 € excl. VAT

  8 to 10 days

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Roller Chain Duplex of type 12B of the brand IWIS known under the reference 12B-2-SS-ELITE-5M-IWIS. It has a pitch 19.05 mm and is to the iso606bs norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060988850
  • MATERIAL
    STAINLESS STEEL
  • TYPE
    12B
  • WEIGHT
    11550  G
  • LUBRICATION
    lubricantfree
  • SERIES
    SS
  • CHAIN STANDARDS
    iso606bs
  • ISO STANDARD BREAKING LOAD
    34.7  KN
  • WEIGHT PER METER
    2.31  KG
  • JOINT SURFACE
    1.79  CM2
  • PITCH
    19.05  MM
  • WIDTH BETWEEN INNER PLATES
    11.68  MM
  • ROLLER DIAMETER
    12.07  MM
  • AXIS DIAMETER
    5.72  MM
  • SHAFT LENGTH
    42.2  MM
  • OUTSIDE WIDTH INSIDE LINK
    15.62  MM
  • PLATE THICKNESS INSIDE OUTSIDE
    1,80/1,80
  • PLATE HEIGHT
    16.13  MM
  • TRANSVERSE PITCH
    19.46  MM
  • ADDITIONAL LENGTH
    4.6  MM
  • NUMBER OF ROWS
    Duplex
Description

The Roller Chain Duplex of type 12B of the brand IWIS known under the reference 12B-2-SS-ELITE-5M-IWIS. It has a pitch 19.05 mm and is to the iso606bs norm.
