Roller chain duplex 160-2-ELITE-5M-IWIS

Part number : 160-2-ELITE-5M-IWIS

IWIS

Description

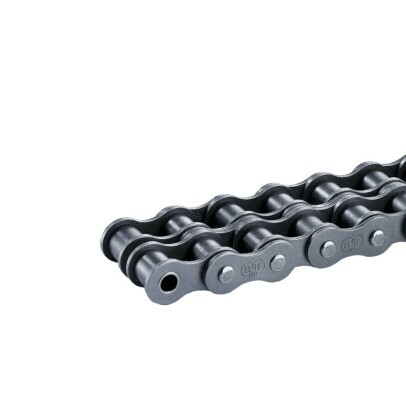

The Roller Chain Duplex of type 160 of the brand IWIS known under the reference 160-2-ELITE-5M-IWIS. It has a pitch 50.8 mm and is to the iso606ansi norm.

Your price: 1 869,36 € excl. VAT

  8 to 10 days

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Roller Chain Duplex of type 160 of the brand IWIS known under the reference 160-2-ELITE-5M-IWIS. It has a pitch 50.8 mm and is to the iso606ansi norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060989123
  • MATERIAL
    STEEL
  • TYPE
    160
  • WEIGHT
    100700  G
  • LUBRICATION
    elidurplus
  • SERIES
    G1
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    446  KN
  • WEIGHT PER METER
    20.14  KG
  • JOINT SURFACE
    12.72  CM2
  • PITCH
    50.8  MM
  • WIDTH BETWEEN INNER PLATES
    31.55  MM
  • ROLLER DIAMETER
    28.58  MM
  • AXIS DIAMETER
    14.29  MM
  • SHAFT LENGTH
    124.2  MM
  • OUTSIDE WIDTH INSIDE LINK
    45.21  MM
  • PLATE THICKNESS INSIDE OUTSIDE
    6,40/6,40
  • PLATE HEIGHT
    48.26  MM
  • TRANSVERSE PITCH
    58.55  MM
  • ADDITIONAL LENGTH
    7.9  MM
  • BREAKING LOAD ASA STANDARD
    655.7  KN
  • NUMBER OF ROWS
    Duplex
Description

The Roller Chain Duplex of type 160 of the brand IWIS known under the reference 160-2-ELITE-5M-IWIS. It has a pitch 50.8 mm and is to the iso606ansi norm.
