Roller chain duplex 16B-2-21-GL-ELITE-5M-IWIS

Part number : 16B-2-21-GL-ELITE-5M-IWIS

IWIS

Description

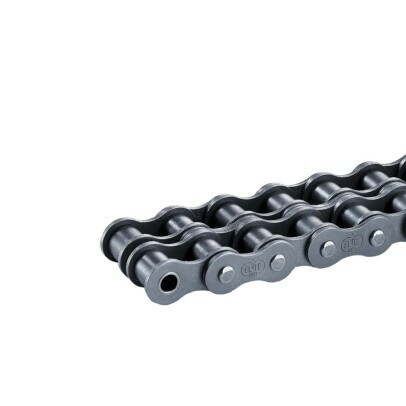

The Roller Chain Duplex of type 16B of the brand IWIS known under the reference 16B-2-21-GL-ELITE-5M-IWIS. It has a pitch 25.4 mm and is to the iso606bs norm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Roller Chain Duplex of type 16B of the brand IWIS known under the reference 16B-2-21-GL-ELITE-5M-IWIS. It has a pitch 25.4 mm and is to the iso606bs norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060988898
  • MATERIAL
    STEEL
  • TYPE
    16B
  • WEIGHT
    30500  G
  • LUBRICATION
    elidurplus
  • SERIES
    GL
  • CHAIN STANDARDS
    iso606bs
  • ISO STANDARD BREAKING LOAD
    106  KN
  • WEIGHT PER METER
    6.1  KG
  • JOINT SURFACE
    4.21  CM2
  • PITCH
    25.4  MM
  • WIDTH BETWEEN INNER PLATES
    17.02  MM
  • ROLLER DIAMETER
    15.88  MM
  • AXIS DIAMETER
    8.28  MM
  • SHAFT LENGTH
    68  MM
  • OUTSIDE WIDTH INSIDE LINK
    25.45  MM
  • PLATE HEIGHT
    21.08  MM
  • TRANSVERSE PITCH
    31.88  MM
  • ADDITIONAL LENGTH
    5.4  MM
  • NUMBER OF ROWS
    Duplex
Description

The Roller Chain Duplex of type 16B of the brand IWIS known under the reference 16B-2-21-GL-ELITE-5M-IWIS. It has a pitch 25.4 mm and is to the iso606bs norm.
