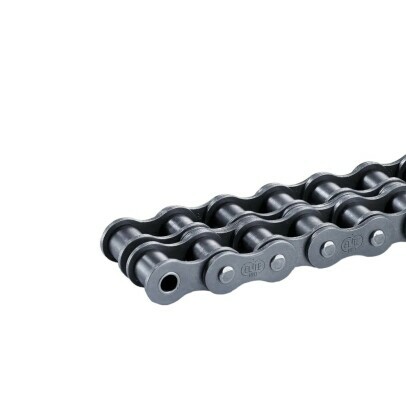

Roller chain duplex 20B-2-SS-ELITE-5M-IWIS

Part number : 20B-2-SS-ELITE-5M-IWIS

IWIS

Description

The Roller Chain Duplex of type 20B of the brand IWIS known under the reference 20B-2-SS-ELITE-5M-IWIS. It has a pitch 31.75 mm and is to the iso606bs norm.

Your price: 2 965,53 € excl. VAT

  8 to 10 days

logo_delivery Delivered tomorrow. order within

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Roller Chain Duplex of type 20B of the brand IWIS known under the reference 20B-2-SS-ELITE-5M-IWIS. It has a pitch 31.75 mm and is to the iso606bs norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060988959
  • MATERIAL
    STAINLESS STEEL
  • TYPE
    20B
  • WEIGHT
    36000  G
  • LUBRICATION
    lubricantfree
  • SERIES
    SS
  • CHAIN STANDARDS
    iso606bs
  • ISO STANDARD BREAKING LOAD
    85  KN
  • WEIGHT PER METER
    7.2  KG
  • JOINT SURFACE
    5.91  CM2
  • PITCH
    31.75  MM
  • WIDTH BETWEEN INNER PLATES
    19.56  MM
  • ROLLER DIAMETER
    19.05  MM
  • AXIS DIAMETER
    10.19  MM
  • SHAFT LENGTH
    79.7  MM
  • OUTSIDE WIDTH INSIDE LINK
    29.01  MM
  • PLATE THICKNESS INSIDE OUTSIDE
    4,00/4,00
  • PLATE HEIGHT
    26.42  MM
  • TRANSVERSE PITCH
    36.45  MM
  • ADDITIONAL LENGTH
    6.1  MM
  • NUMBER OF ROWS
    Duplex
Description

The Roller Chain Duplex of type 20B of the brand IWIS known under the reference 20B-2-SS-ELITE-5M-IWIS. It has a pitch 31.75 mm and is to the iso606bs norm.
