ANSI-120-3-ECOPLUS-DIN8188-5M-IWIS
IWIS

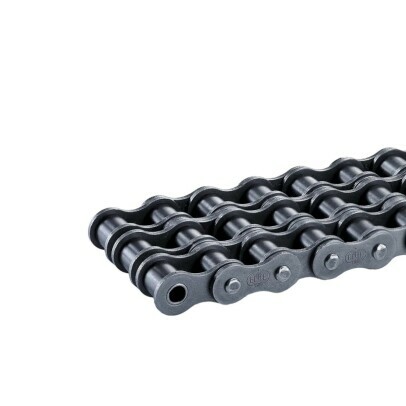

Roller chain triplex ANSI-120-3-ECOPLUS-DIN8188-5M-IWIS

Part number : ANSI-120-3-ECOPLUS-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Triplex of type 120 of the brand IWIS known under the reference ANSI-120-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 38 mm and is to the iso606ansi norm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Roller Chain Triplex of type 120 of the brand IWIS known under the reference ANSI-120-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 38 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616061000001
  • TYPE
    120
  • WEIGHT
    87  G
  • LUBRICATION
    eco1
  • PACKAGING
    5m
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    375  KN
  • WEIGHT PER METER
    17  KG
  • JOINT SURFACE
    11  CM2
  • PITCH
    38  MM
  • WIDTH BETWEEN INNER PLATES
    25  MM
  • ROLLER DIAMETER
    22  MM
  • AXIS DIAMETER
    11  MM
  • OUTSIDE WIDTH INSIDE LINK
    35  MM
  • PLATE HEIGHT
    36  MM
  • ADDITIONAL LENGTH
    6  MM
  • NUMBER OF ROWS
    3
Description

The Roller Chain Triplex of type 120 of the brand IWIS known under the reference ANSI-120-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 38 mm and is to the iso606ansi norm.
