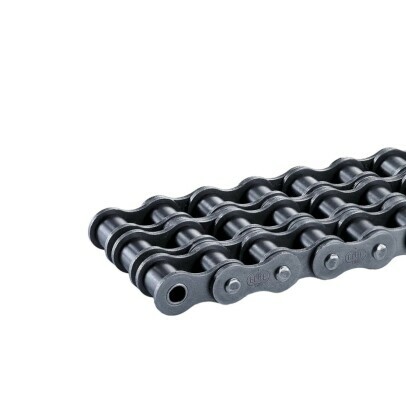

Roller chain triplex ANSI-160-3-ECOPLUS-DIN8188-5M-IWIS

Part number : ANSI-160-3-ECOPLUS-DIN8188-5M-IWIS

IWIS

Description

The Roller Chain Triplex of type 160 of the brand IWIS known under the reference ANSI-160-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 50 mm and is to the iso606ansi norm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The Roller Chain Triplex of type 160 of the brand IWIS known under the reference ANSI-160-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 50 mm and is to the iso606ansi norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060999993
  • TYPE
    160
  • WEIGHT
    150  G
  • LUBRICATION
    eco1
  • PACKAGING
    5m
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    669  KN
  • WEIGHT PER METER
    30  KG
  • JOINT SURFACE
    19  CM2
  • PITCH
    50  MM
  • WIDTH BETWEEN INNER PLATES
    31  MM
  • ROLLER DIAMETER
    28  MM
  • AXIS DIAMETER
    14  MM
  • OUTSIDE WIDTH INSIDE LINK
    45  MM
  • PLATE HEIGHT
    48  MM
  • ADDITIONAL LENGTH
    7  MM
  • NUMBER OF ROWS
    3
Description

The Roller Chain Triplex of type 160 of the brand IWIS known under the reference ANSI-160-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 50 mm and is to the iso606ansi norm.
