ANSI-50-3-ELITE-DIN8188-5M-IWIS
IWIS

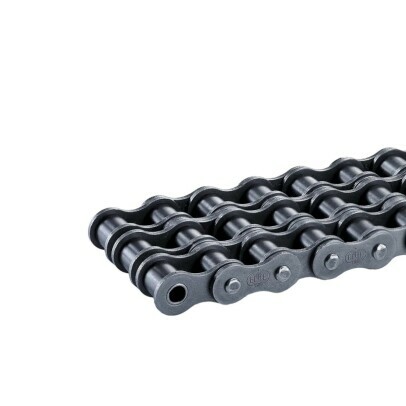

Roller chain triplex ANSI-50-3-ELITE-DIN8188-5M-IWIS

Part number : ANSI-50-3-ELITE-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Triplex of type 50 of the brand IWIS known under the reference ANSI-50-3-ELITE-DIN8188-5M-IWIS. It has a pitch 15 mm and is to the iso606ansi norm.

Your price: 277,50 € excl. VAT

  8 to 10 days

logo_delivery Delivered tomorrow. order within

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Roller Chain Triplex of type 50 of the brand IWIS known under the reference ANSI-50-3-ELITE-DIN8188-5M-IWIS. It has a pitch 15 mm and is to the iso606ansi norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616061000032
  • MATERIAL
    STEEL
  • TYPE
    50
  • WEIGHT
    15  G
  • LUBRICATION
    elidurplus
  • PACKAGING
    5m
  • SERIES
    GL
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    65  KN
  • WEIGHT PER METER
    3  KG
  • JOINT SURFACE
    2  CM2
  • PITCH
    15  MM
  • WIDTH BETWEEN INNER PLATES
    9  MM
  • ROLLER DIAMETER
    10  MM
  • AXIS DIAMETER
    5  MM
  • OUTSIDE WIDTH INSIDE LINK
    13  MM
  • PLATE THICKNESS INSIDE OUTSIDE
    2,00/2,00
  • PLATE HEIGHT
    15  MM
  • ADDITIONAL LENGTH
    4  MM
  • NUMBER OF ROWS
    3
Description

The Roller Chain Triplex of type 50 of the brand IWIS known under the reference ANSI-50-3-ELITE-DIN8188-5M-IWIS. It has a pitch 15 mm and is to the iso606ansi norm.
