ANSI-60-3-ELITE-DIN8188-5M-IWIS
IWIS

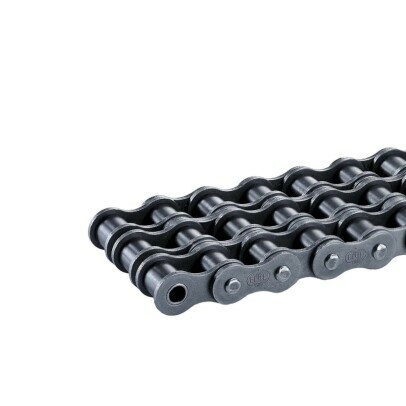

Roller chain triplex ANSI-60-3-ELITE-DIN8188-5M-IWIS

Part number : ANSI-60-3-ELITE-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Triplex of type 60 of the brand IWIS known under the reference ANSI-60-3-ELITE-DIN8188-5M-IWIS. It has a pitch 19 mm and is to the iso606ansi norm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Roller Chain Triplex of type 60 of the brand IWIS known under the reference ANSI-60-3-ELITE-DIN8188-5M-IWIS. It has a pitch 19 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616061000049
  • TYPE
    60
  • WEIGHT
    22  G
  • LUBRICATION
    elidurplus
  • PACKAGING
    5m
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    93  KN
  • WEIGHT PER METER
    4  KG
  • JOINT SURFACE
    3  CM2
  • PITCH
    19  MM
  • WIDTH BETWEEN INNER PLATES
    12  MM
  • ROLLER DIAMETER
    11  MM
  • AXIS DIAMETER
    5  MM
  • OUTSIDE WIDTH INSIDE LINK
    17  MM
  • PLATE HEIGHT
    18  MM
  • ADDITIONAL LENGTH
    4  MM
  • NUMBER OF ROWS
    3
Description

The Roller Chain Triplex of type 60 of the brand IWIS known under the reference ANSI-60-3-ELITE-DIN8188-5M-IWIS. It has a pitch 19 mm and is to the iso606ansi norm.
