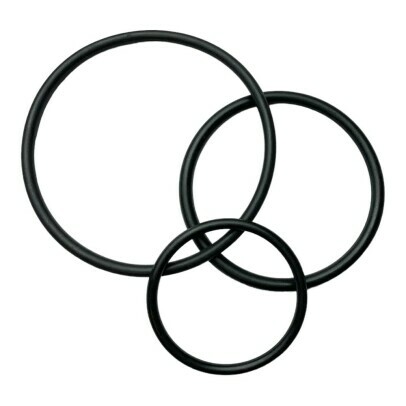

O-Ring seal OR-138X5-NBR70

138 138 5 5

Part number : OR-138X5-NBR70

GEN

Description

The O-ring Seal with the reference OR-138X5-NBR70 has an inner diameter of 138 mm and a thickness of 5 mm. It is made of NBR.

See data sheet
Your price: €3.13 excl. VAT

  44 parts in stock

Quantity Price
20 - 49 €2.69 excl. VAT
50 - 99 €2.25 excl. VAT
100 - 499 €1.81 excl. VAT
500 - inf €1.37 excl. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The O-ring Seal with the reference OR-138X5-NBR70 has an inner diameter of 138 mm and a thickness of 5 mm. It is made of NBR.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

CUSTOMERS ALSO BOUGHT
TECHNICAL DATA
  • INSIDE DIAMETER
    138  MM
  • THICKNESS
    5  MM
  • MATERIAL
    NBR
  • TYPE
    OR
  • HARDNESS
    70  S
  • BRAND
    GEN
  • WEIGHT
    11  G
  • PACKAGING
    1
Description

The O-ring Seal with the reference OR-138X5-NBR70 has an inner diameter of 138 mm and a thickness of 5 mm. It is made of NBR.

EXPERT ADVICE

How to read the reference of an O-ring?

Example:
OR-40X3-NBR90
Where
OR = product type (O-ring or O-ring seal)
40X3 = inside diameter X thickness
NBR = matter
90 = shore hardness

Shore hardness is a material hardness scale, usually between 70 and 90 for O-rings. The higher the number, the harder the material.

What does the number mean at the end of the reference?

This is the indication of shore hardness. Shore hardness is a material hardness scale, usually between 70 and 90 for O-rings. The higher the number, the harder the material.

Difference between NBR, FPM, EPDM, MVQ?

These are the different types of rubber. Each material will be more or less suitable for a use. Refer to the following information: FOR OILS NBR = Nitrile = Butadiene rubber - Acrylonitrile
        from -30°C to +120°C
FPM = Viton = Fluorinated Rubber
        from -20°C to +200°C
MVQ = Silicone rubber
        from -50°C to +210°C
FOR HYDROCARBONS NBR = Nitrile = Butadiene rubber - Acrylonitrile
        from -30°C to +120°C
FPM = Viton = Fluorinated Rubber
        from -20°C to +200°C
FOR BRAKE FLUID EPDM = Ethylene Rubber - Propylene - Diene
        from -40°C to +150°C
FOR WATER EPDM = Ethylene Rubber - Propylene - Diene
        from -40°C to +150°C
 FOR MORE DETAILS ON THE MATERIALS, THEIR STRENGTHS AND LIMITS OF USE, REFER TO THE COMPLETE DESCRIPTION ON THE SEALED SEARCH PAGE

How to choose the size of my O-ring?

An O-ring should not, in general, be too stretched. It is therefore preferable to take a dimension as close as possible to the groove diameter, if applicable.
